从设计到竞速:Vinci Eco Drive 及其电动单座赛车的研发之旅

Industry
Automotive
Country
flag

France

Use case
Prototyping
Technology
CNC Machining
Product

高效原型车和电动单座方程式赛车

case hover image

我们的前届团队就与 Xometry 择幂科技合作过。我们需要解决无法自产机械零件的难题。Xometry 择幂科技刚好提供了最便捷、协作性最佳的方案。其实时报价系统极为便捷,可快速估算零件总成本。用户友好界面便于轻松实现精准的需求配置。此外,快速交付周期则简化了我们最终的组装流程。

协会成员 巴黎莱昂纳多·达芬奇校区的汽车运动与工程学生协会

Xometry 择幂科技继续支持学生协会参与大学生方程式比赛。探索 Vinci Eco Drive 研发历程及其多款单座原型车设计,以及 Xometry 择幂科技如何助力其创新项目。

Xometry 择幂科技支持的单座原型车
  • 行业:汽车
  • 采用的制造工艺:CNC 加工
  • 挑战:快速获取由创新材料制造的精密部件
  • 解决方案:寻找一家提供多种创新工艺与材料的可靠制造合作伙伴

Vinci Eco Drive 是巴黎莱昂纳多·达芬奇校区的汽车运动与工程学生协会。过去十年,该协会成员持续传承技术专长,在诸多相关领域不断创新,包括碳纤维部件制造、钢铝零件加工及车载系统开发等。

两大雄心勃勃的项目:能效原型与大学生方程式赛车的精密设计

Xometry 择幂科技:你们的旗舰项目是?

Vinci Eco Drive (VED):我们的首个历史性项目是高效原型车,旨在以最小能耗实现最长行驶距离。通过优化空气动力学外形与 48V 电池驱动电机,我们以等效 1 升 95 号汽油能耗的情况下,创造了 3,731 公里的行驶记录。该原型车让我们在 2023 年 Eco Green Energy 比赛中获得了总排名第三的好成绩。

我们迄今最具雄心的第二个项目是大学生方程式赛车中的电动单座赛车,完全由学生团队设计。该赛车配备四台轮毂电机(每个轮子一台),总功率约 120 马力,车重 250 公斤,预计 2025 年第二季度完成初个版本。我们计划于 2025 年首次参赛,并进军全球规模最大的大学生方程式赛车德国赛,与超 100 支国际团队同台竞技。

(法国)诺加罗壳牌环保马拉松赛上的高效原型车

(法国)诺加罗壳牌环保马拉松赛上的高效原型车

Xometry 择幂科技:可以再详细介绍一下你们的设计流程吗?

VED我们从明确每个项目的需求与目标出发。第一要务是确保原型车的极致效率与机械可靠性。为此,我们需要设计精良且加工精准的零部件。例如,在高效原型车项目中,我们持续挑战以与满箱汽油等效的电能刷新续航记录。这涉及机械部件摩擦的最小化,并通过材料性能仔细分析,选择最符合我们要求的方案。我们还会研究现有材料特性,以筛选最适配需求的材料。

随后,我们使用计算机辅助设计 (CAD) 软件,如 Dassault Systèmes 3DExperienceFusion360 进行车辆各种部件和组件的建模。通过仿真优化空气动力学与材料强度,以最大化我们原型车的极限性能。

Xometry 择幂科技:你们是如何确定原型车的制造工艺与材料的?

VED选择正确的制造工艺和材料至关重要。我们有三大标准:

  • 性能:选择强度、重量与成本均衡的材料。例如 EN AW-6061 铝与 1.7225 钢,因为这些合金材料能出色抵抗我们原型车承受的各种应力(摩擦应力、扭转应力与压缩应力)。
  • 创新:采用诸如碳纤维等现代材料实现车辆减重与性能提升。这种方法可以保持学生赛车设计的创新领先地位。
  • 可靠性:采用经过验证且可靠的制造工艺,确保部件质量。为此,我们专门通过 CNC 加工实现严格公差。此外,我们对齿轮进行特殊处理,如渗碳处理(0.1-0.2mm 厚度),使硬度达到 59.3 +/- 1 HRC,以提升其耐用性。

Vinci Eco Drive 与 Xometry 择幂科技的联手:战略制造合作关系

Xometry 择幂科技:Xometry 择幂科技是如何助力你们的项目的?

VED我们选择 Xometry 择幂科技制造最复杂的零部件,其中大部分需五轴 CNC 加工。Xometry 择幂科技还协助加工超出我们自有设备能力的大型部件,例如高效原型车中直径约 30 cm 的大型齿轮。

Vinci Eco Drive 的齿轮

Vinci Eco Drive 的齿轮

Xometry 择幂科技制造的 CNC 加工传动部件

Xometry 择幂科技制造的 CNC 加工传动部件

Xometry 择幂科技:这些部件的用途是?

VED这些部件是高效原型车转向、制动与传动系统的核心。在大学生方程式赛车项目中,Xometry 择幂科技负责了全部传动部件的制造。

Xometry 择幂科技:为什么选择与 Xometry 择幂科技合作?

VED我们的前届团队就与 Xometry 择幂科技合作过。我们需要解决无法自产机械零件的难题。Xometry 择幂科技刚好提供了最便捷、协作性最佳的方案。其实时报价系统极为便捷,可快速估算零件总成本。用户友好界面便于轻松实现精准的需求配置。此外,快速交付周期则简化了我们最终的组装流程。

Vinci Eco Drive 的未来宏愿

高效原型车:我们将继续参加 Eco Green Energy 挑战赛,以突破能效极限。此外,我们计划重返汇聚约 100 支欧洲团队的壳牌环保马拉松赛,今年我们已参与其中。

大学生方程赛车:我们的目标是参加 2026 年汇聚超 100 支国际团队的德国大学生方程式赛车。我们正积极筹备电动单座赛车,以迎接这一里程碑。

Explore More Case Studies

了解Xometry 择幂科技如何通过CNC加工提升Pembleton汽车的制造质量与效率 card image

了解Xometry 择幂科技如何通过CNC加工提升Pembleton汽车的制造质量与效率

Automotive Machine Building
CNC Machining
Prototyping, R&D
Read Story

我们已经使用 Xometry 择幂科技多年了,而且我们发现与他们的合作非常简单。他们非常积极地帮助我们寻找工程和制造解决方案,并提供非常准确的交货时间。在极少数情况下出现延误时,他们会及时提前告知并提供可能的替代方案来满足我们的要求

Phil Gregory 创始人 彭布尔顿汽车公司(Pembleton)
Read Story
Efficient Sourcing of Electric Motorcycle Parts with Xometry card image

Efficient Sourcing of Electric Motorcycle Parts with Xometry

Automotive E-Mobility
CNC Machining Sheet Metal
High-Volume Manufacturing
Read Story
Even faster: student Formula SAE team improves their car with Xometry support card image

Even faster: student Formula SAE team improves their car with Xometry support

Automotive
CNC Machining
Prototyping
Read Story

We are very happy with the quality of the parts, they respect all the characteristics we asked, from the materials to the tolerances. We have received the parts in time and are very grateful to Xometry, because thanks to you we are closer to completing the assembly of the car.

Giuseppe Team member Giuseppe Mazzei
Read Story
Xometry assists in the production of Warwick Moto’s industry-leading superbike subframe card image

Xometry assists in the production of Warwick Moto’s industry-leading superbike subframe

Automotive E-Mobility
CNC Machining
Prototyping, R&D
Read Story
Ryvid’s Anthem EV Bike Races Through Production With Xometry’s Horizontal Supply Chain card image

Ryvid’s Anthem EV Bike Races Through Production With Xometry’s Horizontal Supply Chain

Automotive
CNC Machining Sheet Metal Injection Moulding Die Casting
High-Volume Manufacturing
Read Story

The main benefit of [working with] Xometry is definitely speed. We had a vast network of vendors in China, which came with its own challenges. We had to manage the vendors and spent a lot of time project managing, QCing, and working through communication challenges. When we approached Xometry, we noticed right away that they gave us a lot of flexibility, especially with our mould tool. Xometry was really in that sweet spot for us. It was helpful to communicate with a partner that really knows engineering and design. The quality and speed from them were just different, which is really important for us because we needed to get the product out this year.

Dong Tran CEO Ryvid
Read Story
BMW Uses Xometry’s Range of Technologies to Make Custom Assembly Tooling card image

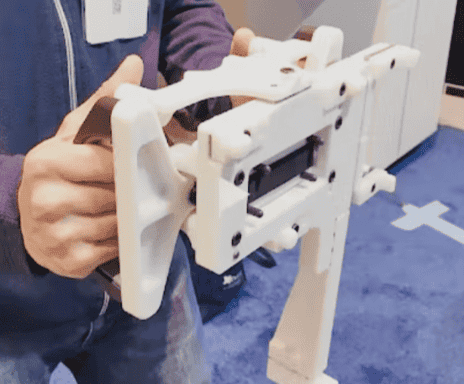

BMW Uses Xometry’s Range of Technologies to Make Custom Assembly Tooling
